⏱️ Dynamic Parameters

Most scene parameters are single scalars. A handful of them can also be keyframed: gravity flipping at frame 60, wind turning on at frame 30, air density changing mid-simulation. These are dynamic parameters and live in the Dynamic Parameters sub-panel under Scene Configuration.

UI Walkthrough

The Dynamic Parameters sub-panel is a collapsible section inside Scene Configuration. Expanding it reveals:

1. A UIList of currently-active dynamic parameters along the left. Each row shows the parameter name (Gravity, Wind, …). The selected row drives the editor below.

2. An Add dropdown above (or beside) the list, listing the five supported keys. Picking an entry adds a new dynamic parameter of that type and automatically creates its frame-1 initial keyframe. Duplicates are rejected.

3. A Remove button next to Add. It deletes the selected dynamic parameter entry and every one of its keyframes.

Once a dynamic parameter is selected in the list, a per-type editor appears below:

• Gravity: an XYZ vector field for the gravity vector at the selected keyframe.

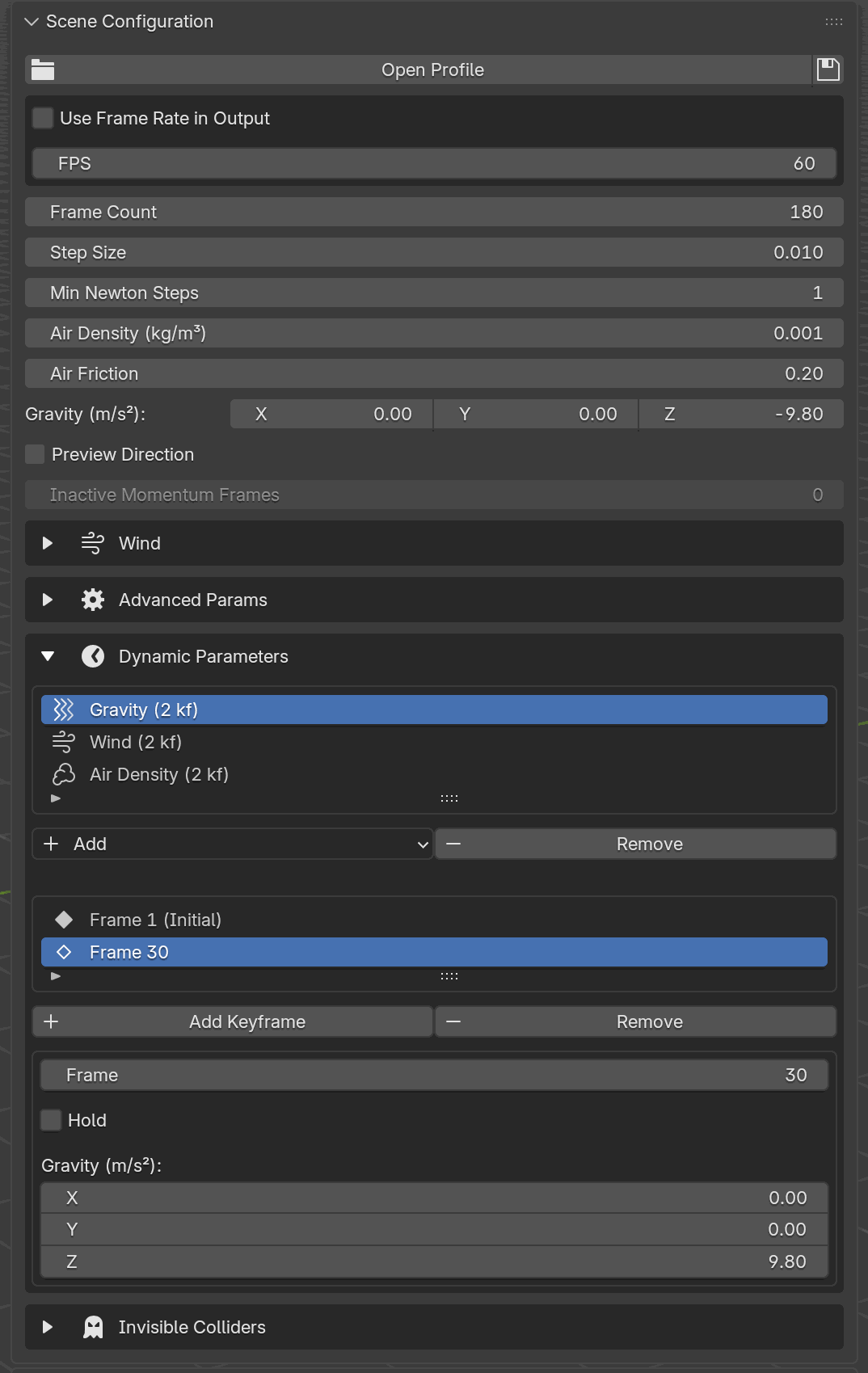

With Gravity selected in the top UIList and Frame 30 selected in the keyframe list (Hold off), the editor exposes an XYZ vector field for the gravity value at that keyframe.

• Wind: an XYZ Direction field plus a single Strength (m/s) scalar. The direction is normalized internally; the strength is the magnitude.

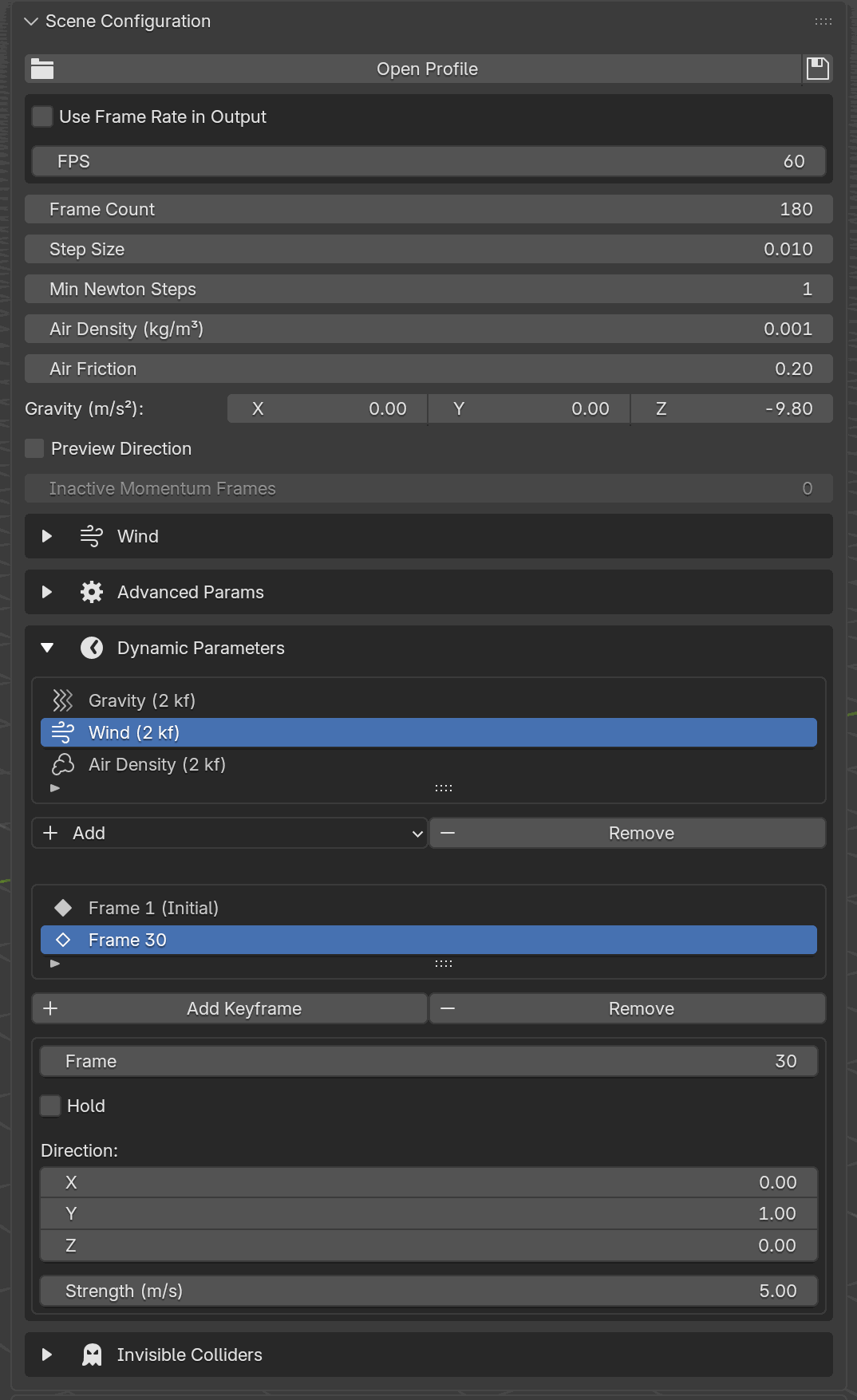

With Wind selected, the editor shows a Direction XYZ field and a separate Strength (m/s) scalar. The direction is normalized at encode time, so only its orientation matters; magnitude comes from strength.

• Air density / Air friction / Vertex air damp: a single scalar field.

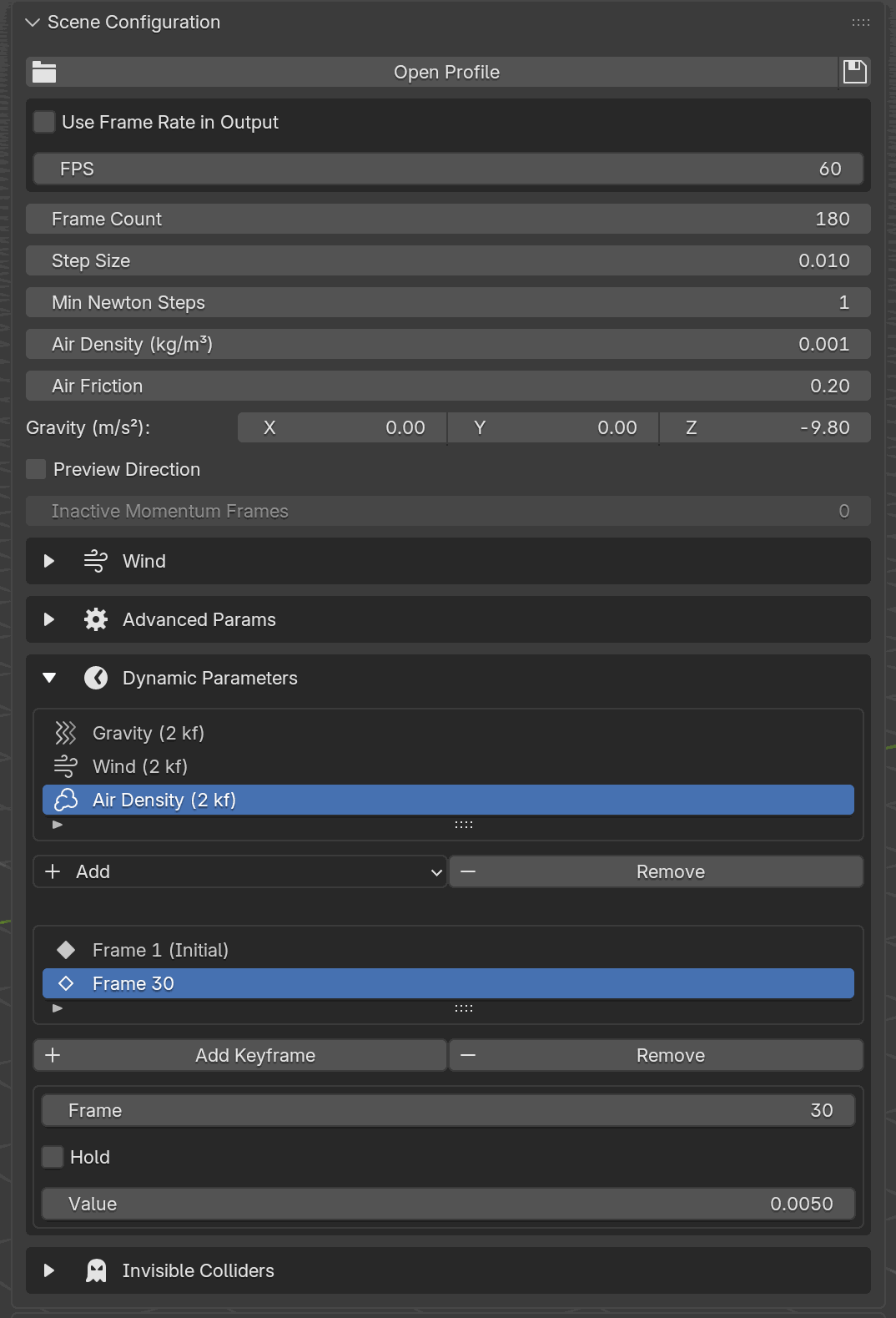

The three scalar-valued keys (Air Density shown) collapse the editor to a single Value field. Air Friction and Vertex Air Damp render the same way.

Below the editor is a second UIList showing every keyframe for the selected parameter, with a frame number per row. The row at index 0 (the frame-1 initial keyframe) is tagged with an (Initial) badge and cannot be removed.

Two buttons sit below this keyframe list:

• Add Keyframe: inserts a new keyframe at the current scene frame. The new keyframe is initialized from the matching global scalar (so adding a gravity keyframe copies the scene’s Gravity value into it); the list is then re-sorted by frame. Inserting at a frame that already has a keyframe is rejected.

• Remove Keyframe: deletes the selected keyframe. Attempting to remove the initial keyframe is rejected with a warning.

The Initial Keyframe

Every dynamic parameter starts with an initial keyframe at frame 1. The initial keyframe does not store its own value; when encoded it reads from the matching global scene parameter (Gravity; Direction + Strength (m/s) for wind; Air Density, Air Friction, Vertex Air Damping). That way the timeline always begins from whatever the scene-wide value is.

A dynamic parameter entry is only sent to the solver if it has more than one keyframe. A single initial keyframe is treated the same as “not keyframed”: the global scalar is used.

Hold: Step-Function Semantics

Keyframes other than the initial one expose a Hold checkbox in the per-keyframe editor. When Hold is on, the previous keyframe’s value is re-emitted at this frame instead of a new value. Combined with an adjacent non-hold keyframe one frame later, this is how you build step functions: a hard instantaneous change with no linear ramp.

Example: “flip gravity at frame 60.”

• Frame 1 (initial): value read from the scene’s Gravity, e.g. (0, 0, -9.8).

• Frame 60: Hold on. The encoder emits (0, 0, -9.8) here as well, holding the initial value until exactly frame 60.

• Frame 61: Hold off, value (0, 0, 9.8). Gravity inverts.

Without the hold at frame 60, the solver would have linearly ramped gravity between frame 1 and frame 61, producing a slow drift instead of a flip.

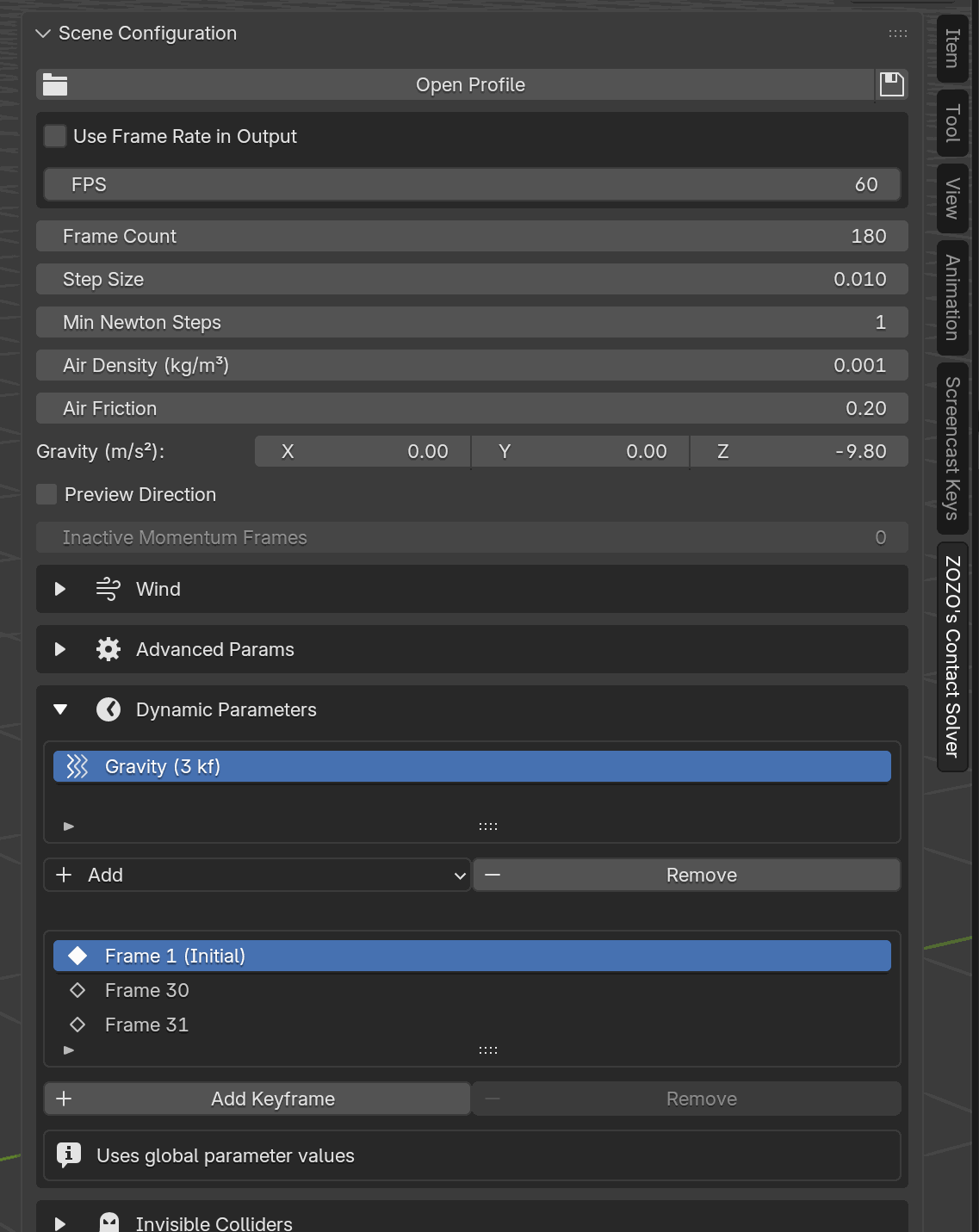

A concrete gravity-flip setup as it appears in the sub-panel. The Gravity (3 kf) entry is selected in the top UIList; its keyframe list below shows Frame 1 (Initial) (reads the scene’s gravity), Frame 30 (Hold, which re-emits that same value), and Frame 31 (steps to the new (0, 0, 9.8) value). The (Initial) badge on frame 1 marks the one keyframe that cannot be removed. The Hold checkbox on frame 30 is what makes this a step function instead of a linear ramp from frame 1 to frame 31.

Supported Parameters

UI label	Python / TOML key	Enum	Value shape
Gravity	gravity	GRAVITY	XYZ vector
Wind	wind	WIND	XYZ dir + strength
Air Density	air_density	AIR_DENSITY	scalar
Air Friction	air_friction	AIR_FRICTION	scalar
Vertex Air Damp	vertex_air_damp	VERTEX_AIR_DAMP	scalar

Only these five parameters are keyframeable. Others (step size, CG tolerance, and so on) have to stay constant across the simulation.

Blender Python API

The same workflow is available from Python. The solver.param.dyn(...) builder drives the same dynamic-parameter list that the sub-panel shows. Every builder method returns self, so you chain them freely – time(f) moves the cursor to frame f (must be strictly increasing), and the next hold() or change(...) attaches a keyframe at that frame. For wind, change(direction, strength=...) encodes both.

from zozo_contact_solver import solver

# Flip gravity at frame 60.
solver.param.dyn("gravity").time(60).hold().time(61).change((0, 0, 9.8))

# Turn wind on at frame 30.
solver.param.dyn("wind").time(30).hold().time(31).change((0, 1, 0), strength=5.0)

# Ramp air density to 0.005 by frame 100 (no hold -> linear).
solver.param.dyn("air_density").time(100).change(0.005)

# Remove a dynamic parameter entirely (including its initial keyframe).
solver.param.dyn("gravity").clear()

Warning

The Python API for dynamic parameters uses frames, not seconds.

solver.param.dyn("gravity").time(60).hold().time(61).change((0, 0, 9.8))
#                          ^^^^^^^ frame number

This is intentional: the Blender UI thinks in frames, and so does this API. The frontend solver API session.param.dyn() (the one called from inside the decoder on the solver side) uses seconds. You normally never see the seconds form unless you’re driving the solver directly from a Python notebook.

Under the hood

Solver keys

Each dynamic-parameter key maps to a solver-side key:

Key	Solver key
gravity	gravity
wind	wind
air_density	air-density
air_friction	air-friction
vertex_air_damp	isotropic-air-friction

Encoding rules

At transfer time each dynamic parameter becomes a list of (time_seconds, value, is_hold) entries under the matching solver key. The observable rules:

• Frames are converted to seconds as (frame − 1) / fps.

• Gravity and wind are coordinate-converted from Z-up to Y-up.

• Wind is sent as direction × strength with the direction normalized. A zero direction vector produces a zero wind vector regardless of the strength.

• A hold keyframe re-emits the previous keyframe’s value; it does not sample the live scene parameter.

• Parameters with fewer than two keyframes are dropped and the solver falls back to the global scalar.
