🖥️ Local#

The solver runs on the same machine as Blender, with no SSH or Docker layer in between. On Windows, use the Windows Native backend instead. Linux needs an NVIDIA GPU and CUDA; on Apple Silicon it is the Metal build of the solver that runs, and its macOS bundle lays the binary out at target/release/ppf-cts-server (inside ppf-contact-solver.app/Contents/Resources) exactly as a Linux checkout does, so Local mode reaches that too.

Warning

Not recommended for day-to-day workstations. The Linux installation performed by warmup.py is destructive (system package installs via apt, CUDA toolkit, shell rc edits, user-level venv, nvm, rustup, NTP) and is impossible to revert or uninstall cleanly. Even if you have a Linux machine with an NVIDIA GPU, we strongly recommend the Docker backend instead. Local mode is intended for the special case where Blender and the solver both live on a disposable VM or short-lived environment that you are willing to wipe.

When to Use It#

  • You are on a disposable Linux VM, cloud instance, or short-lived test rig where you do not care about the host being modified by warmup.py.

  • That same machine happens to run both Blender and the solver, so there is no remote host to SSH into and no reason to spin up Docker.

  • You are iterating on solver code on such a machine and want the fastest possible disconnect/reconnect turnaround, with file transfers copying directly on disk instead of going through SSH or Docker.

If your Linux box is your real workstation, use the Docker backend instead, even though the GPU is local.

Setup#

  1. Set Type to Local.

  2. Fill Path with the root of your solver checkout – the directory that has target/release/ppf-cts-server under it, e.g. ~/ppf-contact-solver. The add-on appends target/release/ itself, so do not point the field at that subdirectory.

  3. Set Project Name on the main panel.

  4. Click Connect. The add-on checks that target/release/ppf-cts-server exists under the path you gave it.

  5. Click Start Server on Remote. The panel waits a few seconds for the server to report that it is ready.

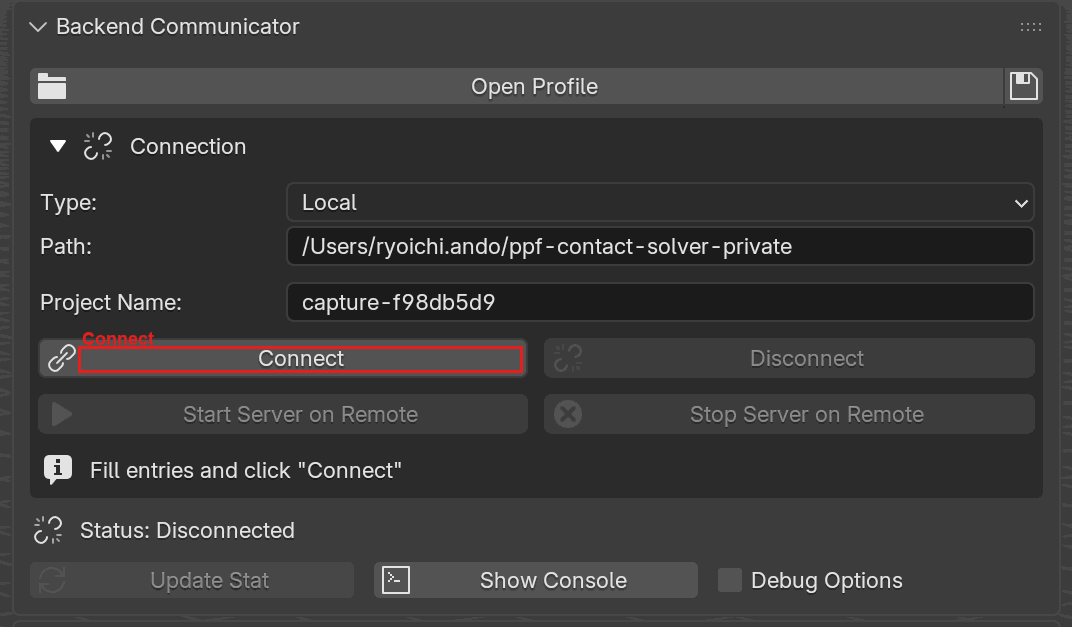

Backend Communicator panel in Local mode

Backend Communicator with Type set to Local. Only Path and Project Name show up; no SSH, Docker, or Windows-native fields. Connect is highlighted.#

Tip

If you ran the solver’s installer, it may have created a Python virtual environment at $HOME/.local/share/ppf-cts/venv. When the add-on finds that venv it activates it automatically before launching the server – you do not need to do anything.

Fields#

Field

Description

Path

Solver checkout root, i.e. the directory with target/release/ppf-cts-server under it. ~/ppf-contact-solver is a typical value; the field defaults to empty and must be set.

The panel does not expose a server port field in Local mode – the port field is drawn only for the Docker-family types – so the port used here is whatever the shared port property currently holds, 9090 by default. It can still be changed from a Docker mode, or set per entry in a profile with the docker_port key.

Dependencies#

Local mode requires neither paramiko nor docker-py. The main panel’s Install Paramiko to Add-on Directory and Install Docker-Py to Add-on Directory buttons are only relevant for SSH and Docker modes.

Troubleshooting#

  • “Remote path not found (…/ppf-cts-server)” - the add-on looked for <Path>/target/release/ppf-cts-server and did not find it. Point Path at the checkout root (the directory that contains target/), not at target/release/ itself, and make sure the solver has been built there.

  • Server startup timed out. - the solver launched but did not report readiness within 16 seconds. Check server.log inside the solver directory; the panel also prints the last 20 lines when the timeout fires.

  • Port already in use. - another solver (or a stale ppf-cts-server process) is already bound to the port. Click Stop Server on Remote first, use the Force Terminate Process button shown next to the port-in-use error, or change the port as described under Fields.

Under the hood

Launch script

Local mode launches the server with a bash script (nohup, source .../bin/activate, ./target/release/ppf-cts-server). That is the same launch path the SSH and Docker backends use. The script is bash-only, which is why Local mode needs a bash shell on the solver machine; Windows has none and goes through the Windows Native backend instead. macOS has bash, and the Metal build of the solver uses the same target/release/ layout, so Local mode works there as well.

Shared port field

The Docker Port field the Docker modes draw is the same underlying property for every connection type, Local included; only the field’s visibility is per-mode. The key in profile TOML files is docker_port for the same historical reason, even on Local connections.

Virtual environment activation

Local mode reuses the same launch script as the SSH and Docker backends: it sources $HOME/.local/share/ppf-cts/venv/bin/activate if that file exists. The Rust server spawns a Python build worker that imports the _ppf_cts_py PyO3 module from that venv. The solver’s own install scripts are responsible for creating the venv; the add-on never creates or modifies it.

File transfer fast path

On local connections, file transfers copy directly on disk instead of going through the solver TCP socket: no CBOR-over-TCP overhead, and much faster than the SSH or Docker paths. The trade-off is cosmetic: the panel does not display a bandwidth figure while a local transfer is in progress. That is expected on this backend.
