🌐 SSH (Direct)

The solver runs directly on a remote Linux host reached over SSH, with no Docker layer in between. For a containerized solver on a remote host, see Docker over SSH. Two UI modes are available here: Custom (explicit fields) and Command (parsed from a raw ssh ... string). Both produce the same connection; once connected, the rest of the UI behaves identically.

Where each piece lives, and how the add-on reaches it. Blue solid arrows carry lifecycle commands (start / stop). Purple dashed arrows carry the TCP connection to ppf-cts-server, which rides an SSH tunnel into the remote’s loopback port. ppf-cts-server binds 127.0.0.1 by default and the add-on passes no --host flag here, so the SSH tunnel is the only path in: nothing else on the remote’s network can reach the solver port. For the containerized variant where ppf-cts-server runs inside a Docker container on the remote, see Docker over SSH.

Warning

Not recommended. Setting up the remote Linux host with warmup.py is destructive (system package installs via apt, CUDA toolkit, shell rc edits, user-level venv, nvm, rustup, NTP) and is impossible to revert or uninstall cleanly. Even if you have a remote Linux machine with an NVIDIA GPU, we strongly recommend the Docker over SSH backend instead. SSH (Direct) is intended for the special case where the remote host is a disposable VM or short-lived environment you are willing to wipe.

When to Use It

• The GPU lives on a different machine from the user’s workstation.

• Multiple users share a lab or cloud solver box.

• You want a persistent remote project that survives Blender restarts.

Setup - Custom Mode

1. Set Type to SSH.

2. Fill in the fields below.

3. Click Connect -> Start Server on Remote.

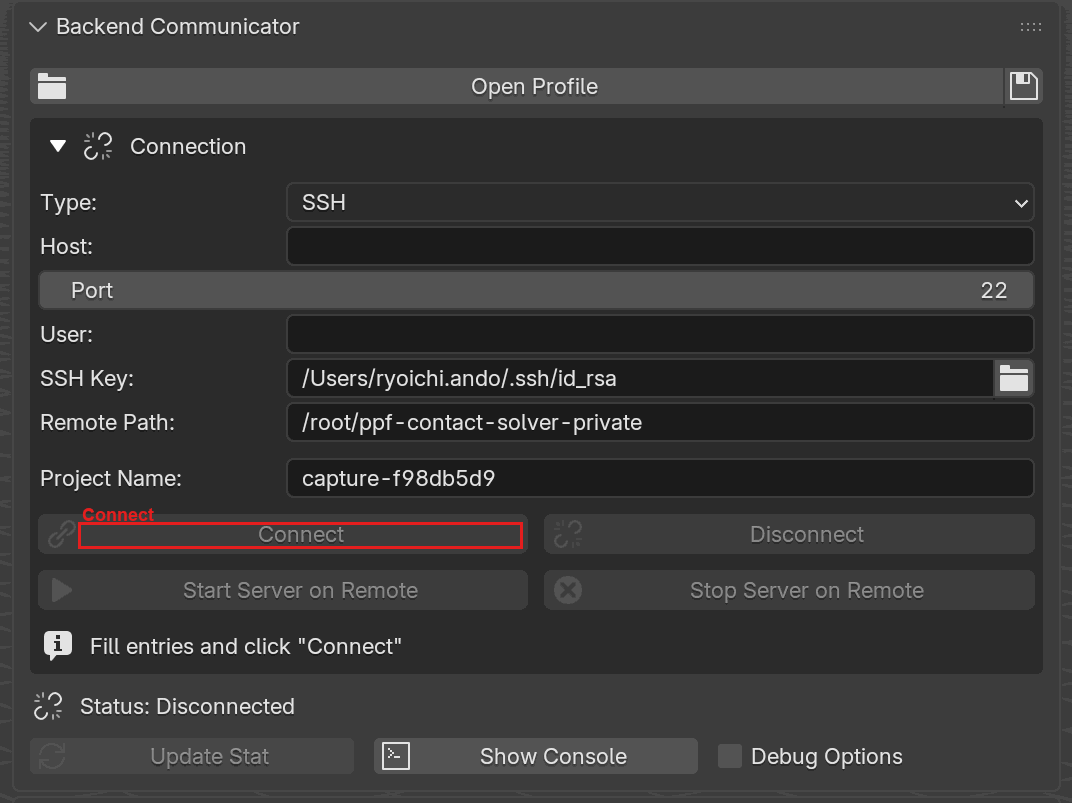

Backend Communicator with Type set to SSH. Host, Port, User, SSH Key, and Remote Path are exposed, plus the shared Project Name field. Connect is highlighted. The panel also draws a Proxy Jump field between SSH Key and Remote Path; this screenshot predates it.

Field	Default	Description
Host	""	Hostname or SSH alias from ~/.ssh/config.
Port	22	SSH port.
User	""	Remote user. Leave empty to use SSH config’s User.
SSH Key	~/.ssh/id_ed25519 or ~/.ssh/id_rsa	Private key file.
Proxy Jump	""	Jump host to tunnel through, written the way ssh -J takes it: [user@]host[:port], comma separated for a chain. Leave empty to use the alias’s ProxyJump from ~/.ssh/config. See Jump Hosts.
Remote Path	"" (e.g. /root/ppf-contact-solver)	Remote solver directory (must contain the ppf-cts-server binary).

The panel does not expose a server port field in SSH modes – the port field is drawn only for the Docker-family types – so the port used here is whatever the shared port property currently holds, 9090 by default. That one value is used by every connection type, so a port set while a Docker type was selected carries over, and a profile can set it on an SSH entry with the docker_port key.

Aliases from your ~/.ssh/config are resolved automatically, including entries pulled in via Include directives. If the alias’s config supplies a hostname, port, user, identity file, or jump host, you can leave those fields blank in the panel and they will be filled in at connect time.

Supported ssh_config Options

The add-on ships its own minimal parser – it does not shell out to the system ssh binary. Only the following keywords are honored:

Keyword	Supported	Notes
Host	yes	Wildcards * and ? match via fnmatch. Multiple patterns per line are allowed.
HostName	yes
Port	yes
User	yes
IdentityFile	yes	~ is expanded. Only the first match per host wins; multiple IdentityFile lines are not tried in sequence.
ProxyJump	yes	Each jump host is resolved through the config in turn, so an alias brings its own HostName, Port, User, and IdentityFile, and a jump host carrying a ProxyJump of its own extends the chain. none connects directly. See Jump Hosts.
Include	yes	Relative paths resolve against ~/.ssh/. Globs (*, ?) expand.

Everything else, including ProxyCommand, Match, ForwardAgent, LocalForward/RemoteForward, StrictHostKeyChecking, UserKnownHostsFile, PreferredAuthentications, IdentitiesOnly, CertificateFile, ControlMaster/ControlPath/ControlPersist, ServerAliveInterval/ServerAliveCountMax, ConnectTimeout, AddressFamily, BindAddress, LogLevel, PubkeyAcceptedAlgorithms, and SetEnv, is silently ignored. Host-key checking is always AutoAddPolicy regardless of what your config says, and the keepalive interval is hard-coded to 30 s.

Setup - Command Mode

Paste a shell-style SSH command and the add-on extracts host, port, username, and key path from it. This is convenient when you already copy such a line from a cloud provider or a shared ops doc.

1. Set Type to SSH Command.

2. Paste into SSH Command, for example:

   ssh -p 2222 -i ~/.ssh/gpu_key alice@gpu01.example.com


3. Set Remote Path as above. Click Connect. There is no server port field in this mode either; see the note under Custom Mode for how the port is chosen.

The parser reads the destination ([user@]host, or an ssh://user@host:port URI) plus -p for port, -i for key path, -l for login name, -J for jump hosts, and those same four settings written as -o Port=, -o IdentityFile=, -o User=, and -o ProxyJump=. Every other ssh option is accepted and ignored, -F included: the add-on always reads ~/.ssh/config. A setting given twice keeps the first value, so -p outranks a later -o Port=.

Options are matched against ssh’s own option list rather than by a leading dash, so each one consumes its own argument. ssh -p 2222 gpu-alias connects to gpu-alias on port 2222, and ssh -J alice@bastion.example.com gpu01.example.com reads the jump host as a jump host rather than as the destination. An option written after the destination counts too (ssh gpu01.example.com -p 2222), matching ssh itself; anything past a second bare word is the remote command and is ignored.

If the command cannot be parsed, the operator reports why and aborts: an unknown option, an option missing its argument, an unbalanced quote, or no host token at all.

Jump Hosts

A solver host that is only routable from a bastion is reached by naming the bastion, and the add-on opens the hops itself. Every SSH-backed server type supports it:

• SSH and Docker over SSH: type the jump host into Proxy Jump, in the form ssh -J takes it ([user@]host[:port], comma separated for a chain, ordered outward from your workstation).

• SSH Command and Docker over SSH Command: put -J (or -o ProxyJump=) in the command, exactly as you would run it in a shell.

• Either way, leaving it empty falls back to the ProxyJump entry ~/.ssh/config gives for the host, so a host already configured for your terminal needs nothing typed into the panel.

ssh -J bastion.example.com gpu01.internal          # Command mode
bastion.example.com                                # Proxy Jump field
alice@bastion.example.com:2222,inner.internal      # two hops

Each hop is resolved through ~/.ssh/config the same way the destination is, so a jump host written as an alias brings its own HostName, Port, User, and IdentityFile, and a jump host whose own config carries a ProxyJump extends the chain in front of itself. A user or port written into the spec overrides what the config says for that alias. A hop with no IdentityFile authenticates with your agent and default keys, the same way ssh would.

The hops are opened in order, each one tunneled through the one before it, and the connection to the solver host rides the last one. They are torn down with the connection, and on Disconnect they close from the far end inward. A hop that refuses the connection reports which one it was (Jump host bastion.example.com:22 failed: ...) and closes the hops already opened. A spec that names no host, or one whose jump hosts point back at each other, is refused before anything is dialed.

Warning

Every hop gets the same host-key treatment as the destination: unknown keys are accepted silently. See Host-key verification.

SSH Keys

• Ed25519 and RSA keys work out of the box.

• Encrypted (passphrase-protected) keys are not supported by the add-on’s paramiko integration. paramiko raises an exception rather than prompting for the passphrase anywhere. Use ssh-agent or decrypt the key file before connecting.

• PuTTY .ppk keys are not supported; convert them to OpenSSH or PKCS#8 format first.

Multiple Users on One Solver Host

Sharing a single solver host between multiple users is possible but not recommended.

Installing paramiko

The SSH backend requires the paramiko Python package. If it is not present, the main panel shows an Install Paramiko to Add-on Directory button that installs it into Blender’s user scripts/addons/modules directory; click it and wait for the background installer to finish.

Under the hood

Command-mode parser

The Command-mode parser splits the pasted string with shlex, then walks the tokens against ssh’s own option list: the letters that take an argument (-p, -i, -l, -J, -o, and the rest) and the letters that stand alone (-C, -v, -4, and the rest). Matching the real list is what lets an option consume its own argument, so a bare word is the destination only when no preceding option claimed it. Single-letter options cluster (-Cv), and an argument may be attached (-p2222) or separate (-p 2222). A letter outside both lists is refused rather than skipped, since ssh would not have accepted it either and the token after it cannot be classified.

Five values are kept: destination, port, login name, identity file, and jump hosts. Everything else is accepted and dropped. If no host can be extracted the operator reports Failed to parse command. Ensure it includes host. and aborts; a refused option, a missing argument, or an unbalanced quote is reported in its own words. The parser never invokes the system ssh binary; the parsed fields go straight into paramiko.

~/.ssh/config resolution

When Host looks like an alias instead of a DNS name, the add-on parses ~/.ssh/config (first-match, with Include directives resolved) and fills in HostName, Port, User, IdentityFile, and ProxyJump for the alias. Later matching entries fill in fields earlier entries left blank, so a trailing wildcard Host * block provides sensible defaults without overriding explicit blocks. If the config file is missing or the alias is not found, the alias text is used as the hostname verbatim. Only the seven keywords listed in Supported ssh_config options are read; the parser tokenizes each non-comment line on whitespace or =, matches the first word case-insensitively, and drops the line if the keyword isn’t one it recognizes.

Jump-host chain

A jump spec is resolved before the connection is dispatched: each hop goes through the same alias resolution as the destination, and a hop that carries a ProxyJump is expanded first, so the result is a flat list of hops ordered outward from the workstation. A hop appearing twice in that expansion is a loop and is refused there, so a config that points two hosts at each other fails with the trail it followed rather than recursing.

paramiko then opens one client per hop. Hop 0 is dialed directly; every later hop, and finally the solver host, is dialed over a direct-tcpip channel opened on the previous hop, which is the same mechanism ssh uses for ProxyJump. The destination address handed to each channel is the one this workstation resolved, so the name is resolved once here rather than depending on what the jump host’s resolver would answer. The keepalive that covers the session covers each hop as well.

Host-key policy

Unknown host keys are accepted silently (paramiko AutoAddPolicy). This is not hardened against MITM attacks and should not be relied on for untrusted networks.

Key-loading errors

SSHException: not a valid ... key means the key file is in a format paramiko cannot read. Typical causes: a PuTTY .ppk file (convert first), or a modern OpenSSH key written with a cipher paramiko was built without.

paramiko install path

The Install Paramiko to Add-on Directory button runs pip install --target <dir> into Blender’s user scripts/addons/modules directory on a background thread. That path is already on sys.path and sits outside the extension tree, which is why it is used rather than a directory inside the add-on. The import itself is a plain importlib.import_module, but the presence test looks in that directory specifically, and it gates the Connect button as well as the banner, so a paramiko installed anywhere else on Blender’s sys.path still leaves Connect greyed out.
