| Fabric | Drape DC % | Target % | Folds | Bend droop | bend | young-mod | Poisson |
|---|---|---|---|---|---|---|---|
| Silk | 33.0 | 20-40 | 10 | 78.7° | 1.42 | 500 | 0.4 |
| Flag | 26.4 | 20-40 | 10 | 82.3° | 0.83 | 1000 | 0.4 |
| Cotton | 68.2 | 60-76 | 10 | 64.2° | 4.3 | 5500 | 0.35 |
| Wool | 61.2 | 40-70 | 11 | 67.0° | 3.67 | 2000 | 0.4 |
| Denim | 85.9 | 70-90 | 8 | 45.9° | 10.0 | 10000 | 0.25 |
| Leather | 53.0 | 47-70 | 14 | 75.8° | 1.8 | 13000 | 0.4 |
Silk
Drape coefficient 33.0%
| observed folds 10
| cantilever tip droop 78.7°
| bend
1.42,
young-mod 500,
Poisson 0.4

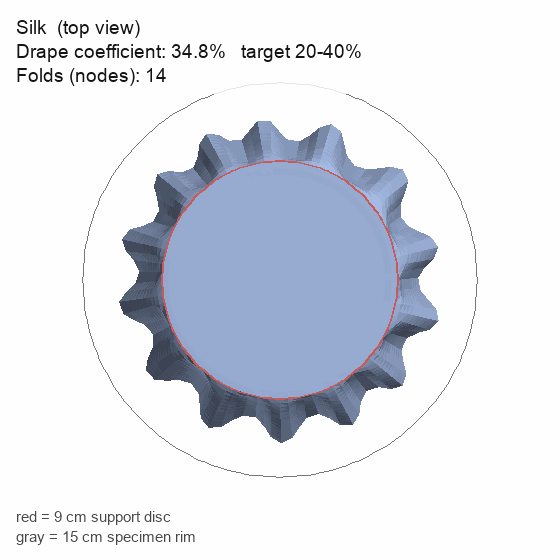

Looking straight down at the draped fabric. The shaded
area is its shadow (the drape coefficient); the wavy edge is its folds.
The same drape seen at an angle, showing the folds.
A strip held at the left, drooping under gravity. The blue
line is its centerline; its angle from horizontal is the droop.
Flag
Drape coefficient 26.4%
| observed folds 10
| cantilever tip droop 82.3°
| bend
0.83,
young-mod 1000,
Poisson 0.4

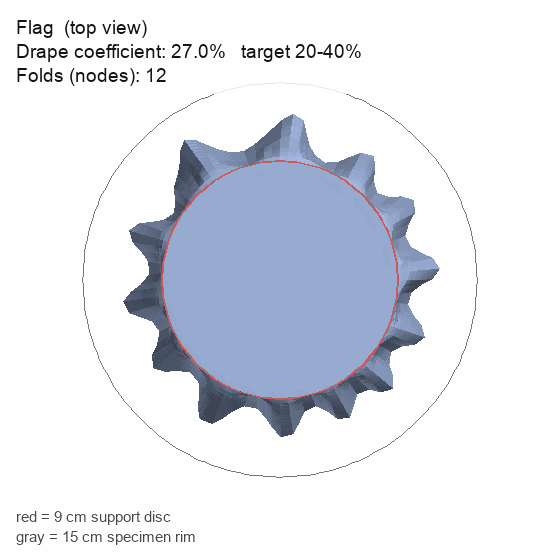

Looking straight down at the draped fabric. The shaded
area is its shadow (the drape coefficient); the wavy edge is its folds.
The same drape seen at an angle, showing the folds.
A strip held at the left, drooping under gravity. The blue
line is its centerline; its angle from horizontal is the droop.
Cotton
Drape coefficient 68.2%
| observed folds 10
| cantilever tip droop 64.2°
| bend
4.3,
young-mod 5500,
Poisson 0.35
Looking straight down at the draped fabric. The shaded
area is its shadow (the drape coefficient); the wavy edge is its folds.
The same drape seen at an angle, showing the folds.
A strip held at the left, drooping under gravity. The blue
line is its centerline; its angle from horizontal is the droop.
Wool
Drape coefficient 61.2%
| observed folds 11
| cantilever tip droop 67.0°
| bend
3.67,
young-mod 2000,
Poisson 0.4
Looking straight down at the draped fabric. The shaded
area is its shadow (the drape coefficient); the wavy edge is its folds.
The same drape seen at an angle, showing the folds.
A strip held at the left, drooping under gravity. The blue
line is its centerline; its angle from horizontal is the droop.
Denim
Drape coefficient 85.9%
| observed folds 8
| cantilever tip droop 45.9°
| bend
10.0,
young-mod 10000,
Poisson 0.25

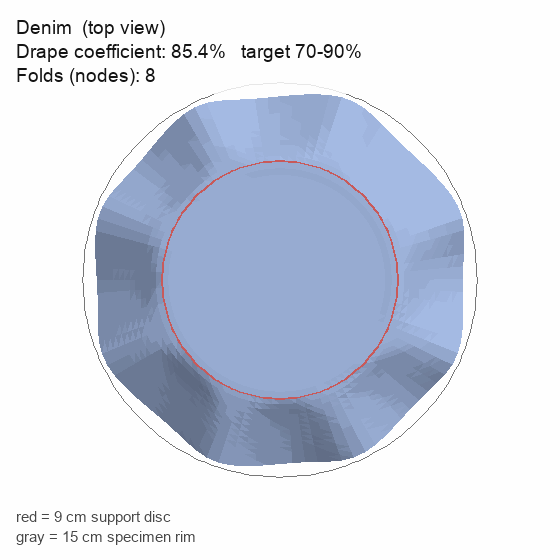

Looking straight down at the draped fabric. The shaded
area is its shadow (the drape coefficient); the wavy edge is its folds.
The same drape seen at an angle, showing the folds.
A strip held at the left, drooping under gravity. The blue
line is its centerline; its angle from horizontal is the droop.
Leather
Drape coefficient 53.0%
| observed folds 14
| cantilever tip droop 75.8°
| bend
1.8,
young-mod 13000,
Poisson 0.4

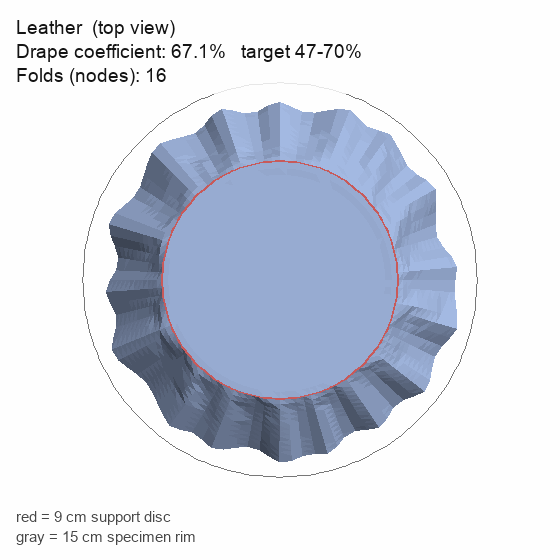

Looking straight down at the draped fabric. The shaded
area is its shadow (the drape coefficient); the wavy edge is its folds.
The same drape seen at an angle, showing the folds.
A strip held at the left, drooping under gravity. The blue
line is its centerline; its angle from horizontal is the droop.
